These are the manuals I have. The first one is for 1984-89 Phazers, the second is for 1990-96 Phazers part # LIT-12618-PZ-50. If there are any additional pages you need just let me know and I will post them on this site.

Click on thumbnails below to see larger image, pages will open in a new window.

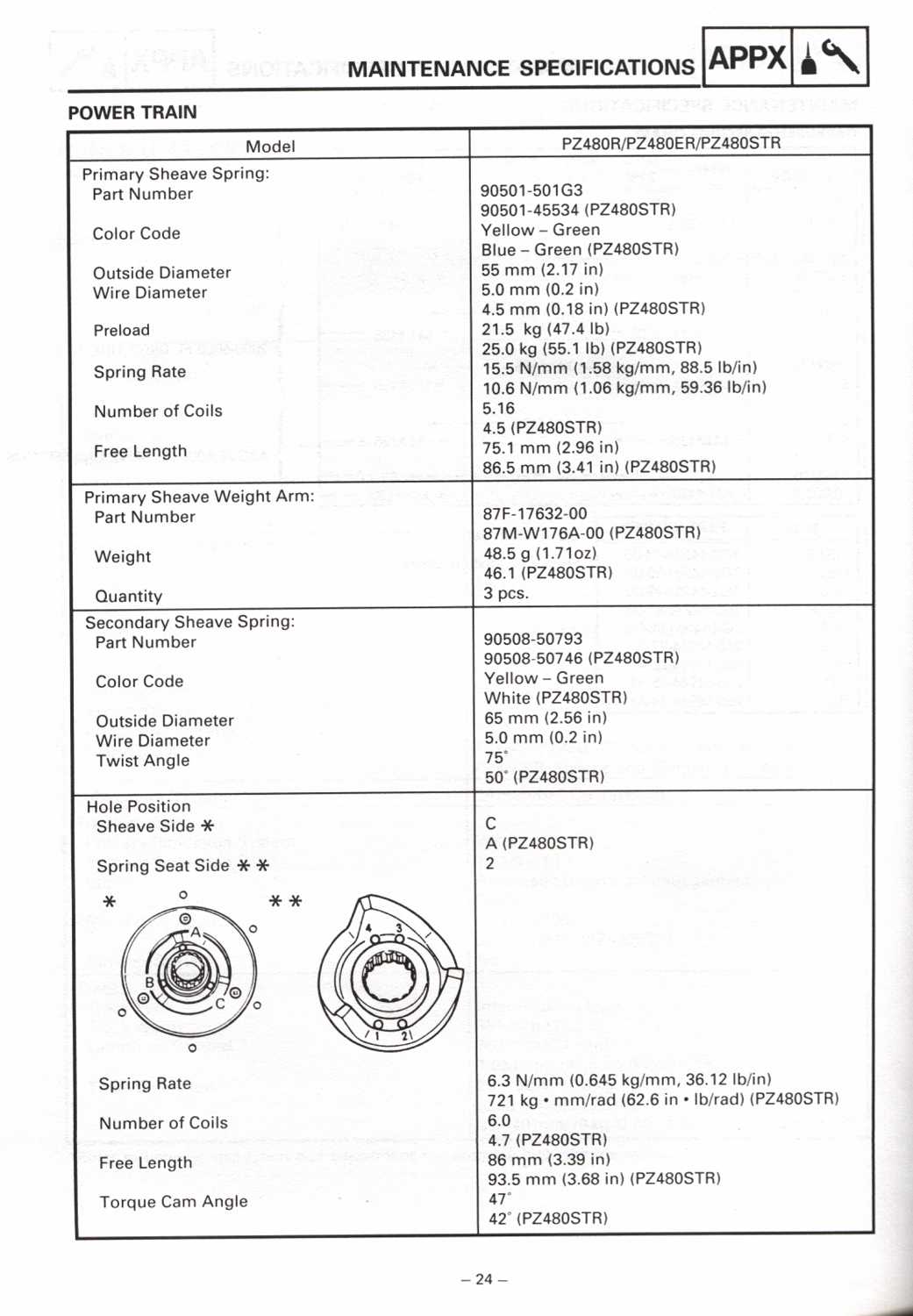

Clutching specs for 1990-91 Phazers

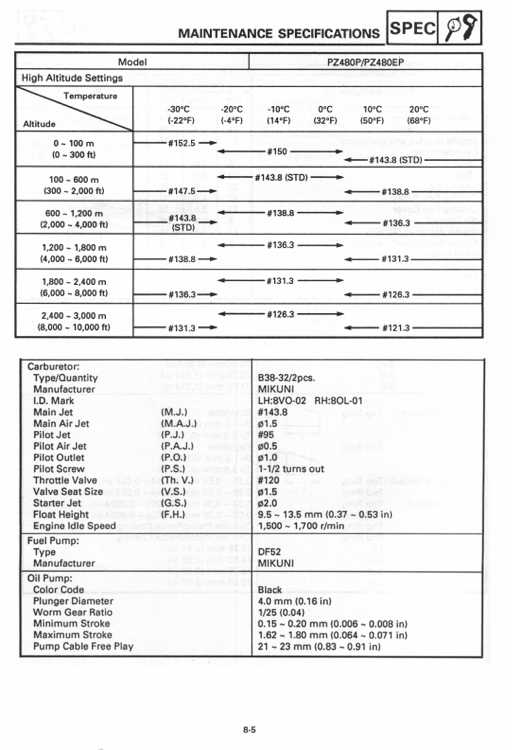

Carb Specs for 1984-1989 Phazers                    Carb specs for 1990-1999 Phazers

Trouble shooting pages includes electrical and lighting system testing for 1984-1989 Phazers

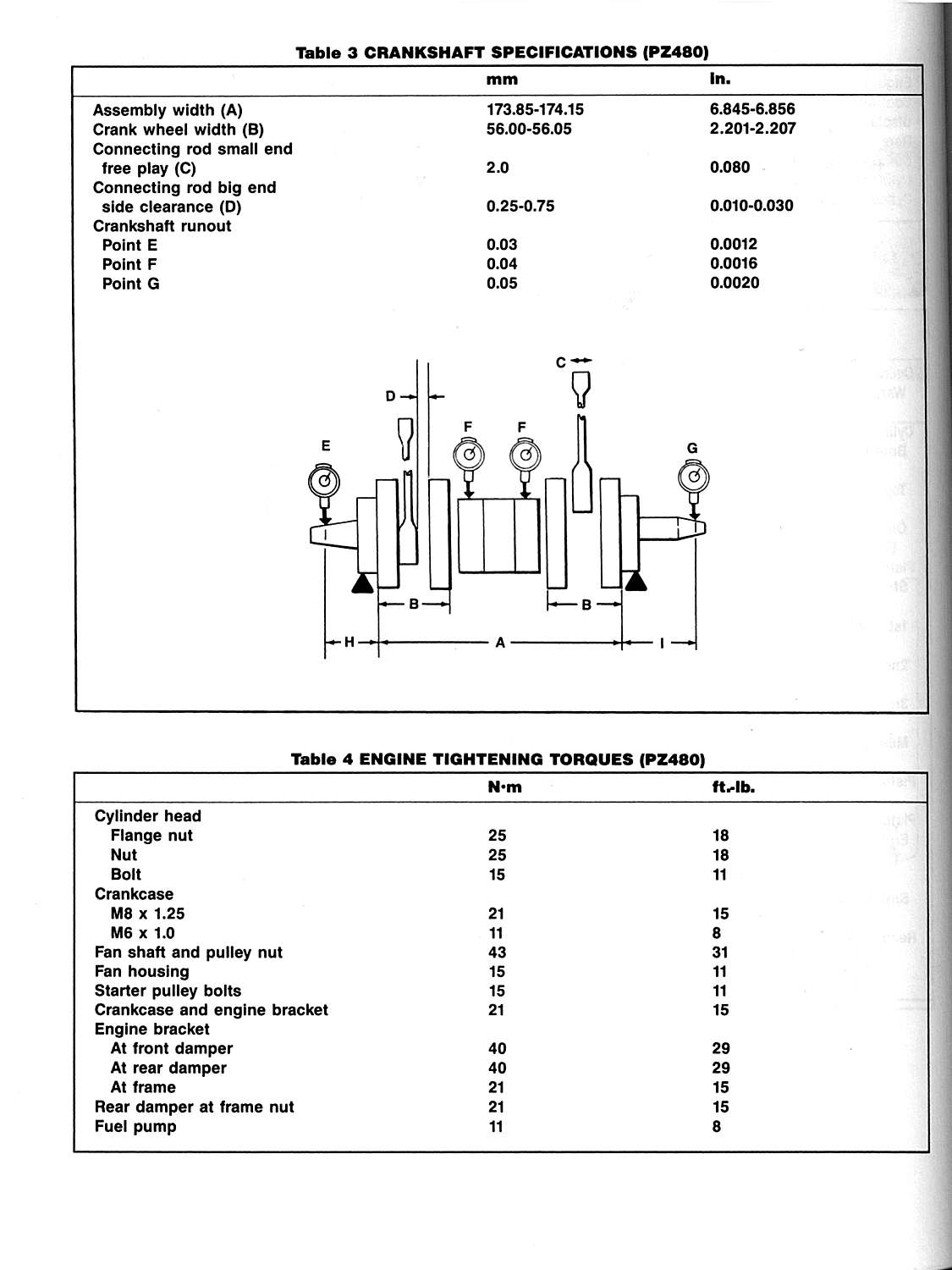

1984-89 Phazer Crank and torque specs

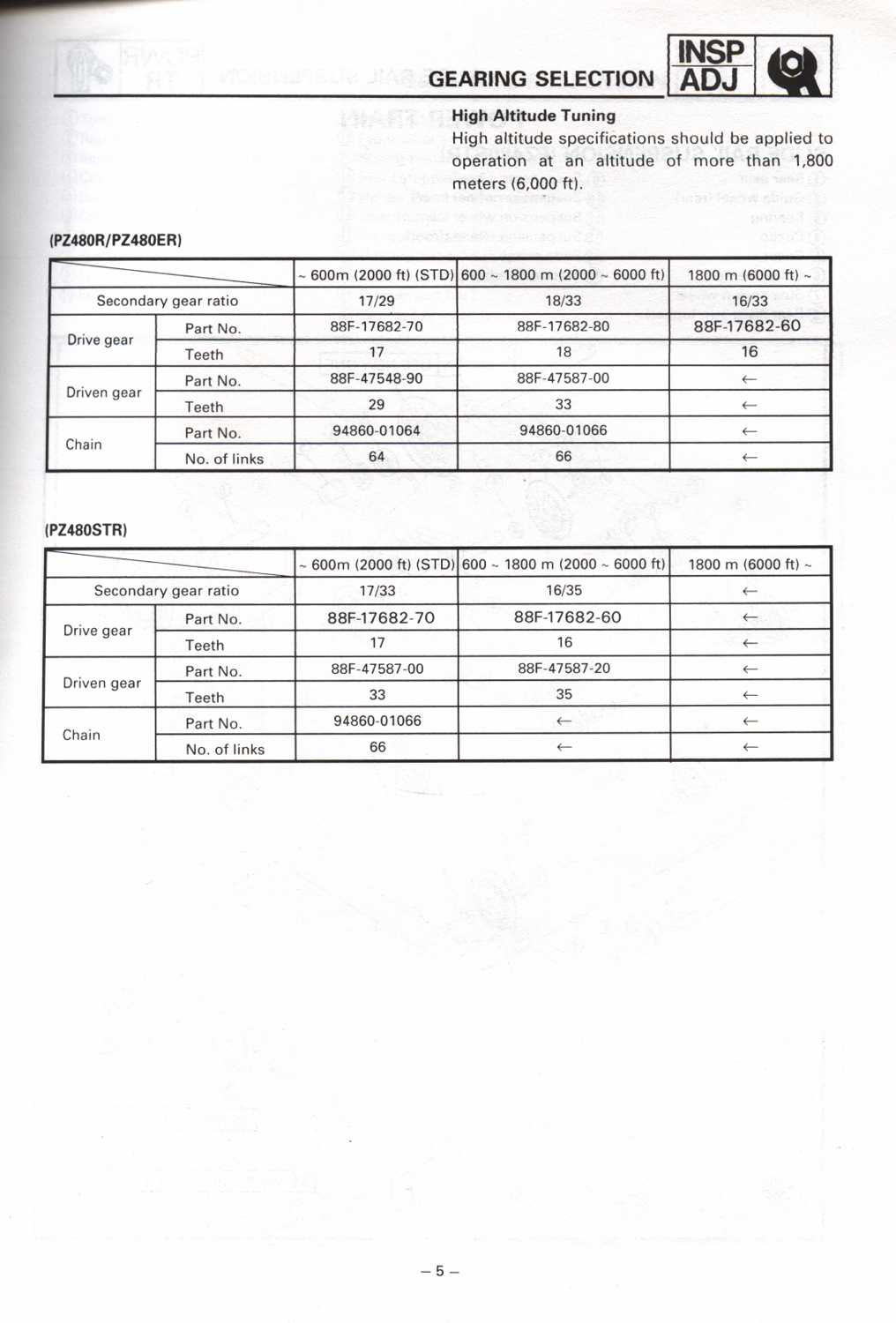

High Altitude tuning and rear suspension setup

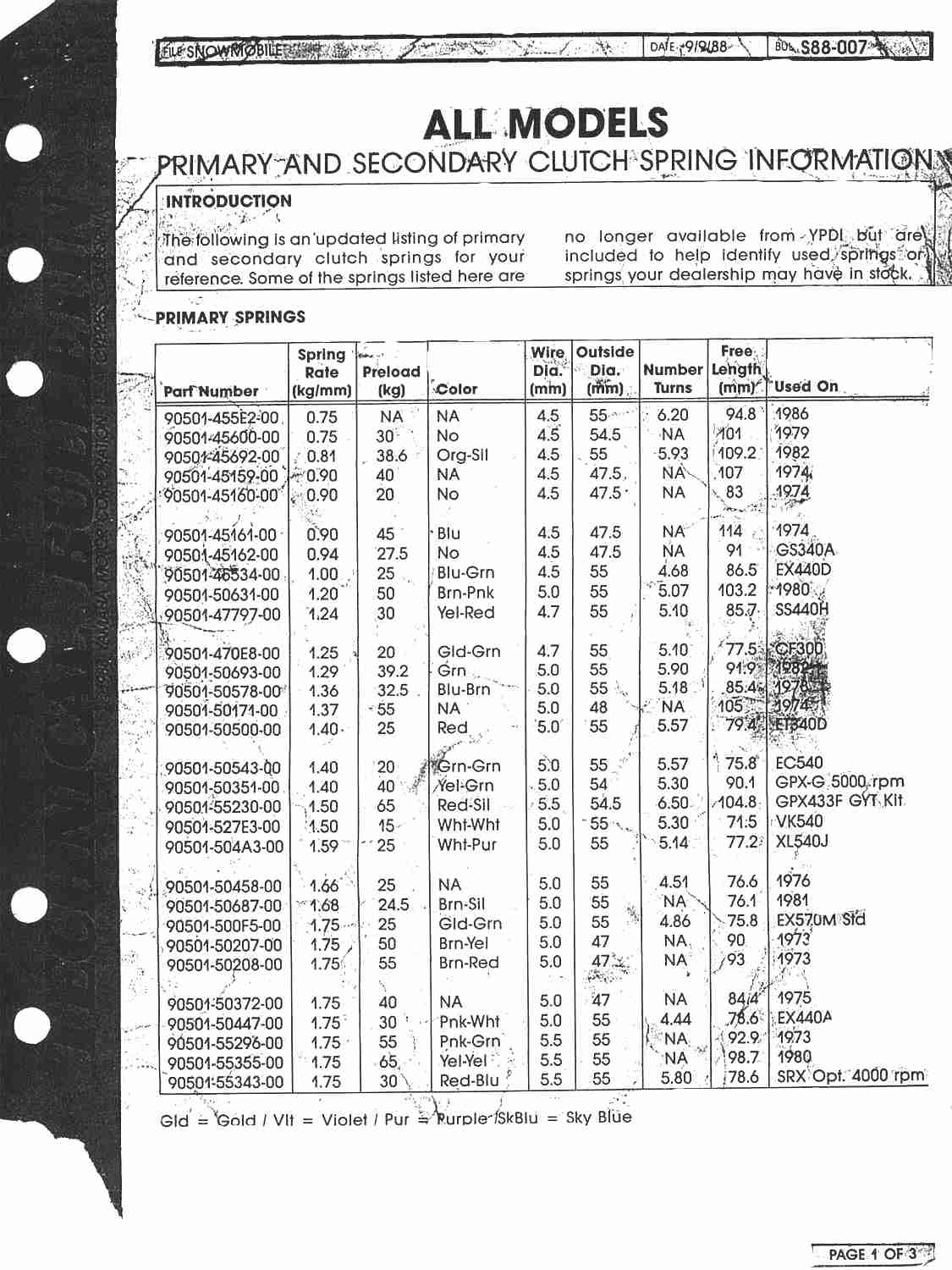

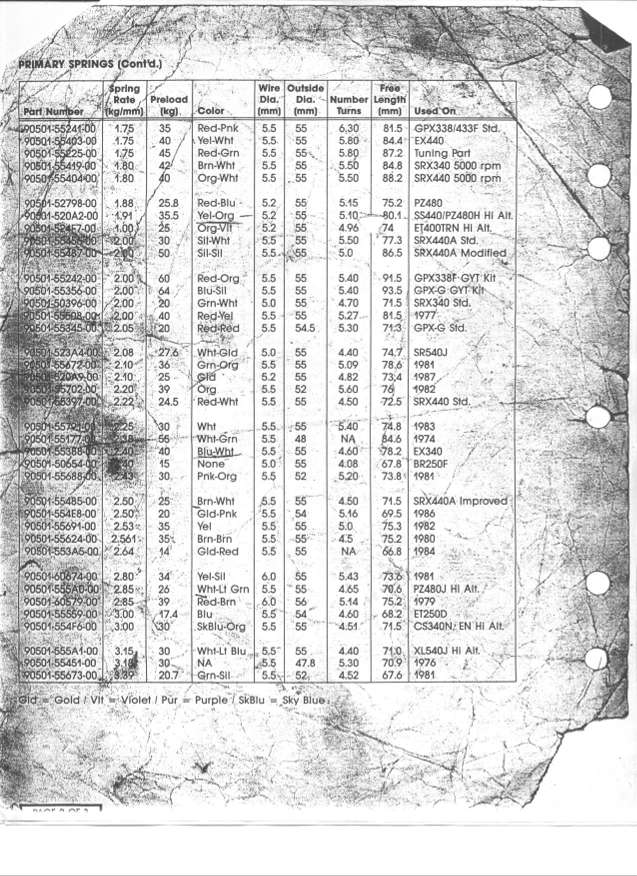

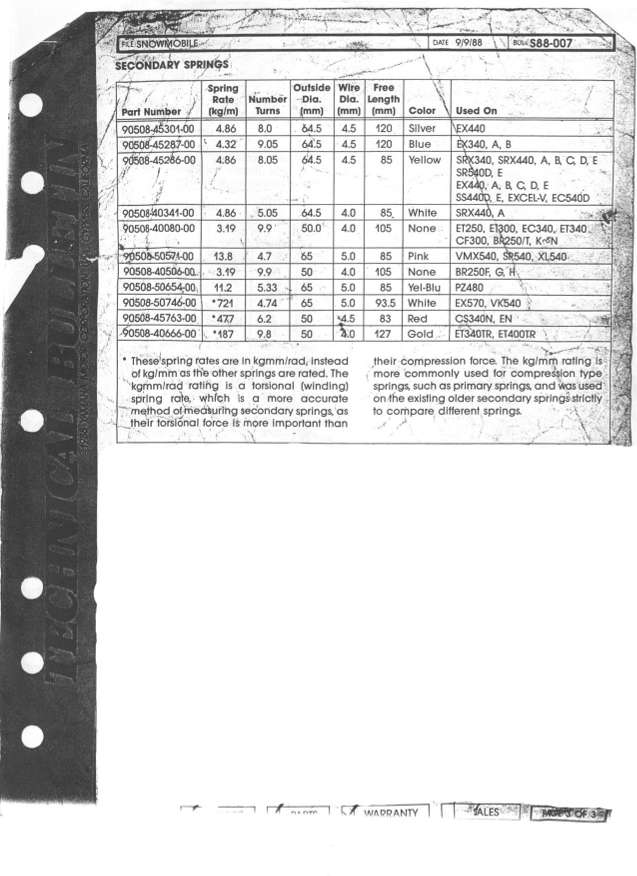

Spring Charts
